nnUNet v2模型训练

nnUNet v2模型训练

1.数据集处理

nnUnet要求rgb-png格式的数据，故将原数据集由单通道堆叠成三通道的RGB图像

import cv2
import numpy as np
import os
def gray_to_rgb(image_gray):
    # 创建一个全零的三通道图像
    height, width = image_gray.shape
    image_rgb = np.zeros((height, width, 3), dtype=np.uint8)
    # 将灰度图像的值复制到红通道
    image_rgb[:, :, 2] = image_gray
    image_rgb[:, :, 1] = image_gray
    image_rgb[:, :, 0] = image_gray
    return image_rgb
# 设置目标文件夹路径
 # 包含灰度PNG图像的文件夹路径
output_folder = # 用于保存RGB图像的文件夹路径
root_folder=
# 创建输出文件夹（如果不存在）
if not os.path.exists(output_folder):
    os.makedirs(output_folder)
for root, dirs, files in os.walk(root_folder):
    # 遍历目标文件夹中的所有图像文件
    if root == root_folder:
        for dir_name in dirs:
            input_folder = os.path.join(root, dir_name, dir_name + "_label")
            print(input_folder)
            for filename in os.listdir(input_folder):
                if filename.endswith('.png'):
                    # 构造图像文件的完整输入路径
                    input_image_path = os.path.join(input_folder, filename)
                    # 读取灰度图像
                    image_gray = cv2.imread(input_image_path, cv2.IMREAD_GRAYSCALE)
                    if image_gray is not None:
                        # 转换为RGB图像
                        image_rgb = gray_to_rgb(image_gray)
                        # 构造保存的RGB图像文件名（输出路径）
                        output_image_path = os.path.join(output_folder, filename.replace('.png', '_rgb.png'))
                        # 保存RGB图像到指定输出路径
                        cv2.imwrite(output_image_path, image_rgb)
            print("Conversion completed.")

原先数据集的格式要求：

• train
  • images
  • labels
• test
  • images
  • labels

将数据集转化为nnUnet标准格式，改写nnUNet/nnunetv2/dataset_conversion/Dataset120_RoadSegmentation.py

if __name__ == "__main__":
    # extracted archive from https://www.kaggle.com/datasets/insaff/massachusetts-roads-dataset?resource=download
    source = '/root/autodl-tmp/nnUNet/Coronary'
    print(source)
    dataset_name = 'Dataset150_Segmentation'
    nnUNet_raw = '/root/autodl-tmp/nnUNet/dataset/nnUNet_raw'
    imagestr = join(nnUNet_raw, dataset_name, 'imagesTr')
    imagests = join(nnUNet_raw, dataset_name, 'imagesTs')
    labelstr = join(nnUNet_raw, dataset_name, 'labelsTr')
    labelsts = join(nnUNet_raw, dataset_name, 'labelsTs')

    maybe_mkdir_p(imagestr)
    maybe_mkdir_p(imagests)
    maybe_mkdir_p(labelstr)
    maybe_mkdir_p(labelsts)

    train_source = join(source, 'train')
    test_source = join(source, 'test')

    with multiprocessing.get_context("spawn").Pool(8) as p:

        # not all training images have a segmentation
        valid_ids = subfiles(join(train_source, 'labels'), join=False, suffix='png')
        num_train = len(valid_ids)
        r = []
        for v in valid_ids:
            r.append(
                p.starmap_async(
                    load_and_covnert_case,
                    ((
                         join(train_source, 'images', v),
                         join(train_source, 'labels', v),
                         join(imagestr, v[:-4] + '_0000.png'),
                         join(labelstr, v),
                         50
                     ),)
                )
            )

        # test set
        valid_ids = subfiles(join(test_source, 'labels'), join=False, suffix='png')
        for v in valid_ids:
            r.append(
                p.starmap_async(
                    load_and_covnert_case,
                    ((
                         join(test_source, 'images', v),
                         join(test_source, 'labels', v),
                         join(imagests, v[:-4] + '_0000.png'),
                         join(labelsts, v),
                         50
                     ),)
                )
            )
        _ = [i.get() for i in r]

    generate_dataset_json(join(nnUNet_raw, dataset_name), {0: 'R', 1: 'G', 2: 'B'}, {'background': 0, 'coronary': 1},
                          num_train, '.png', dataset_name=dataset_name)

生成的数据集：

• 数据集名称
  • imagesTr
  • imagesTs
  • labelsTr
  • labelsTs
  • dataset.json

添加环境变量：

export nnUNet_raw="/root/autodl-tmp/nnUNet/dataset/nnUNet_raw"
export nnUNet_preprocessed="/root/autodl-tmp/nnUNet/dataset/nnUNet_preprocessed"
export nnUNet_results="/root/autodl-tmp/nnUNet/dataset/nnUnet_results"

预处理数据集：

nnUNetv2_plan_and_preprocess -d 150 --verify_dataset_integrity #150为任务id

2.模型训练

开始训练：

nnUNetv2_train CONFIGURATION TRAINER_CLASS_NAME TASK_NAME_OR_ID FOLD (additional options)

• CONFIGURATION： 模型架构，三种Unet: 2D U-Net, 3D U-Net and a U-Net Cascade(U-Net级联)。
• TASK_NAME_OR_ID： 任务全名TaskXXX_MYTASK或者是ID号
• FOLD： 第几折交叉验证，可选 [0, 1, 2, 3, 4]，一共五折。

nnUNetv2_train 666 2d 4

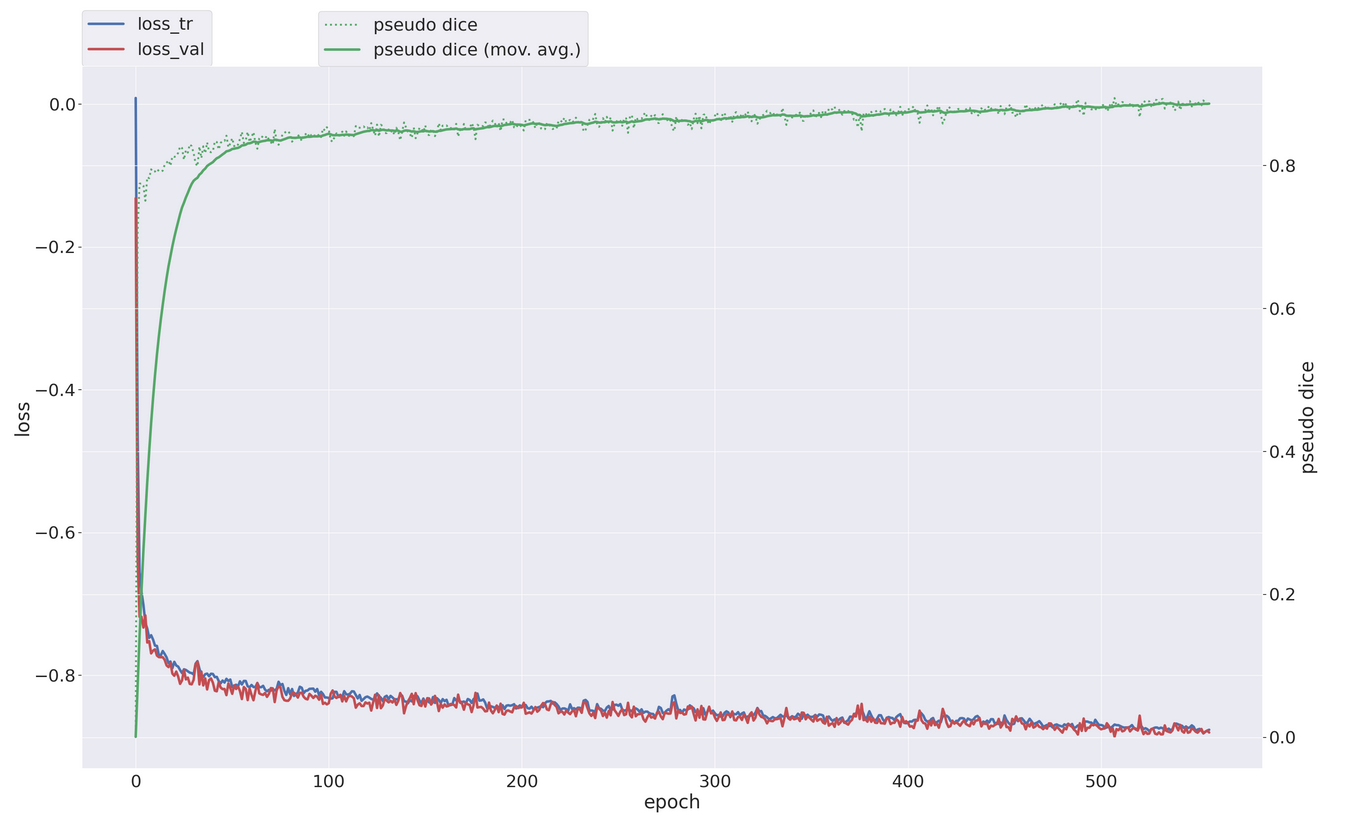

loss曲线：

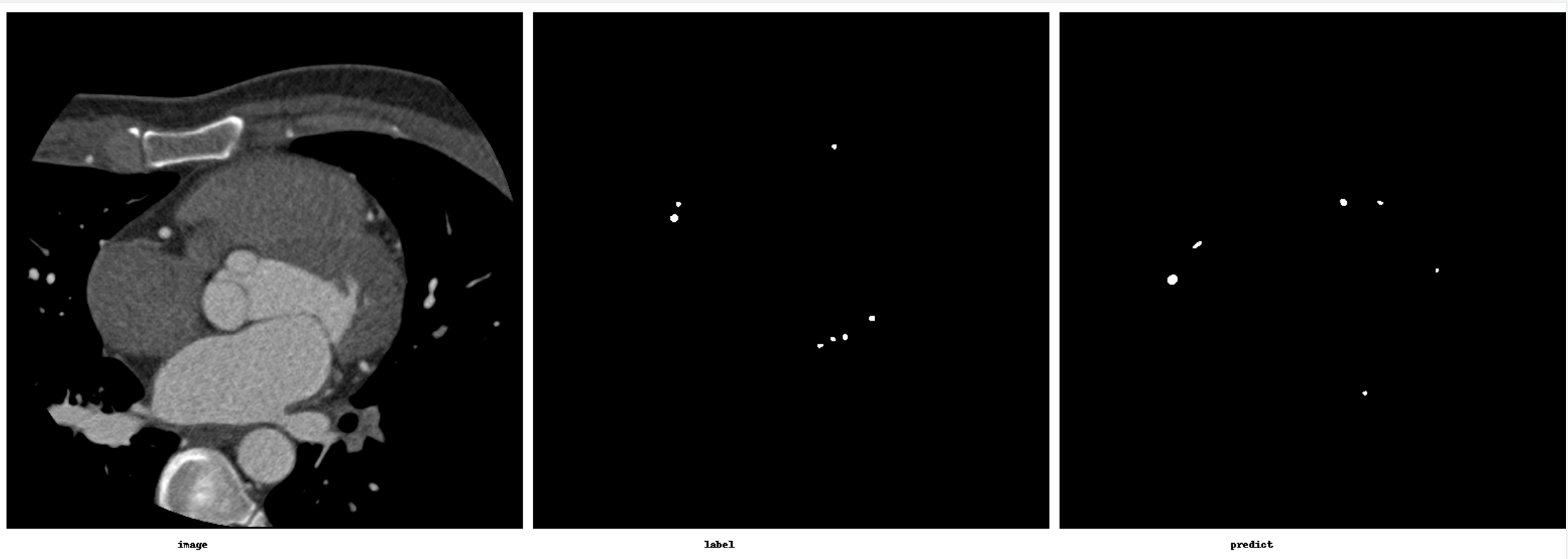

3.模型测试

nnUNetv2_predict -i “测试集路径” -o “输出路径” -chk checkpoint_best.pth -c 2d -f 4 -d 150 --save_probabilities

将二值掩码转换为0或255

from PIL import Image
import os

def process_images_in_folder(input_folder, output_folder):
    for root, dirs, files in os.walk(input_folder):
        for file in files:
            if file.endswith(".png"):
                input_image_path = os.path.join(root, file)
                output_image_path = os.path.join(output_folder, file)

                # 打开输入图像
                image = Image.open(input_image_path)

                # 将像素值为1的通道变为255
                image = image.convert("RGB")
                data = image.getdata()
                new_data = [(r, g, b) if r != 1 and g != 1 and b != 1 else (255, 255, 255) for (r, g, b) in data]
                image.putdata(new_data)

                # 保存修改后的图像
                image.save(output_image_path)

# 指定输入文件夹和输出文件夹的路径
input_folder_path = ""
output_folder_path = ""

if not os.path.exists(output_folder_path):
    os.makedirs(output_folder_path)

process_images_in_folder(input_folder_path, output_folder_path)

评价指标：

HD95: 5.20

Average Dice: 0.8144
